ISOLATED INDUSTRIAL I/O COMPRESSED
INTO A SINGLE COMPONENT
ANALOG INPUTS
DIGITAL BI-DIRECTIONAL I/O
Eight (8) ±80mV Input channels
Eight (8) Voltage (±10V) Input channels
Eight (8) Voltage (±100V) Input channels
Eight (8) mA (4-20mA) Input channels
Eight (8) Thermocouple Input channels
Eight (8) Resistance (0-640 Ohms) Input channels
DIGITAL INPUTS
Eight (8) 24V DC/AC Digital Inputs
Sixteen (16) 24V DC/AC Digital Inputs
Eight (8) 90-240VAC or 120-240VDC Digital Inputs
DIGITAL OUTPUTS
Eight (8) 24V DC/AC Photo Relay Outputs
Sixteen (16) 24V DC/AC Photo Relay Output
Eight 90-240VAC Triac Outputs
Eight (8) 24V Programmable
DC/AC IN/OUT Channels
Eight (8) 90- 240VAC Programmable
AC IN/OUT
Channels

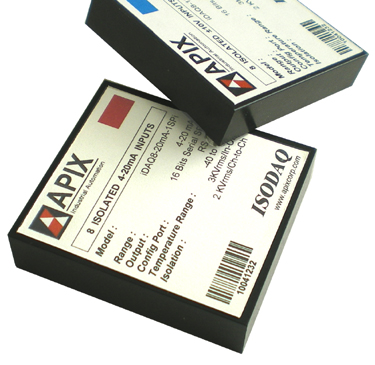

The ISODAQ SPi Series
Input Modules feature 8 independent channels
and an SPi interface. They are fully isolated with
3000 Vrms between
Input, Power, SPi serial link and 2000 Vrms Channel-to-Channel.
These are extremely compact and ideal for embedded applications directly on
your own boards. As an example,
A 6U CPCI Carrier will take 8 ISODAQS and enable systems with over
1200 synchronized channels in a single rack.
ISODAQS combine Signal Conditioning,
robust Isolation, and highly stable A/D conversion technologies on a
per channel basis.
All 8 channels convert synchronously. The sampling frequency can be set by the user up to 1000Hz. If higher rates are required, please
contact factory.
DESCRIPTION
FEATURES
- Easy to use
- Operating Temperature Range -40 to +85 ºC
- Up to 250 Vrms Signal Overrange Protection
- Accuracy 0.01 %
- Highly stable Apix technology 16 bit
A/D Conversion
- Ultra low Drift versus temperature
- No multiplexing, 8 Independent
synchronous channels
- The sampling rate can be set by
the user up to 1000 Samples/Sec ( all 8 channels will convert each
millisec )
- Multi-Pole Filters automatically track Sampling Rate
- 140 db Common Mode Rejection at 50/60 Hz
- 90 db Normal Mode Rejection at 50/60 Hz
- Fully isolated with 3000 Vrms between
Input-Power-SPi serial link and 2000 Vrms Channel-to-Channel
- Ideal for embedded applications
directly on your own boards.
