DESCRIPTION

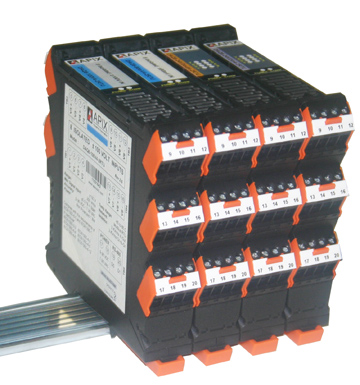

The ISODIN Series DIN Modules feature 8 independent
Isolated Analog channels
and conform to the Industry Standard Modbus RTU Communications Protocol.
Based on their high channel density, a single
32 module segment includes 256 channels while 4 such segments with 3
repeaters provide 1024 analog channels.
They are fully isolated with 3000 Vrms between Input, Power,
RS-485 serial link and 2000 Vrms Channel-to-Channel.
FEATURES
- Operating Temperature Range -40 to +85 ºC
- Up to 170 Volts Signal Overrange Protection
- Accuracy 0.01 %
- Highly stable Apix technology 16 bit
A/D Conversion
- Ultra low Drift versus temperature
- No multiplexing, 8 Independent
synchronous channels
- The sampling rate can be set by
the user up to 1000 Samples/Sec ( all 8 channels will convert each
millisec)
- Multi-Pole Filters automatically track Sampling Rate
- 140 db Common Mode Rejection at 50/60 Hz
- 90 db Normal Mode Rejection at 50/60 Hz
- 921.6 Kbaud Max Communication rate
Complies with the requirements of
IEC61000-6-5 and IEC61326-1, In particular:
- IEC61000-3-2 IEC61000-4-2
IEC61000-4-4 IEC61000-4-5
IEC61000-4-6 IEC61000-4-12
